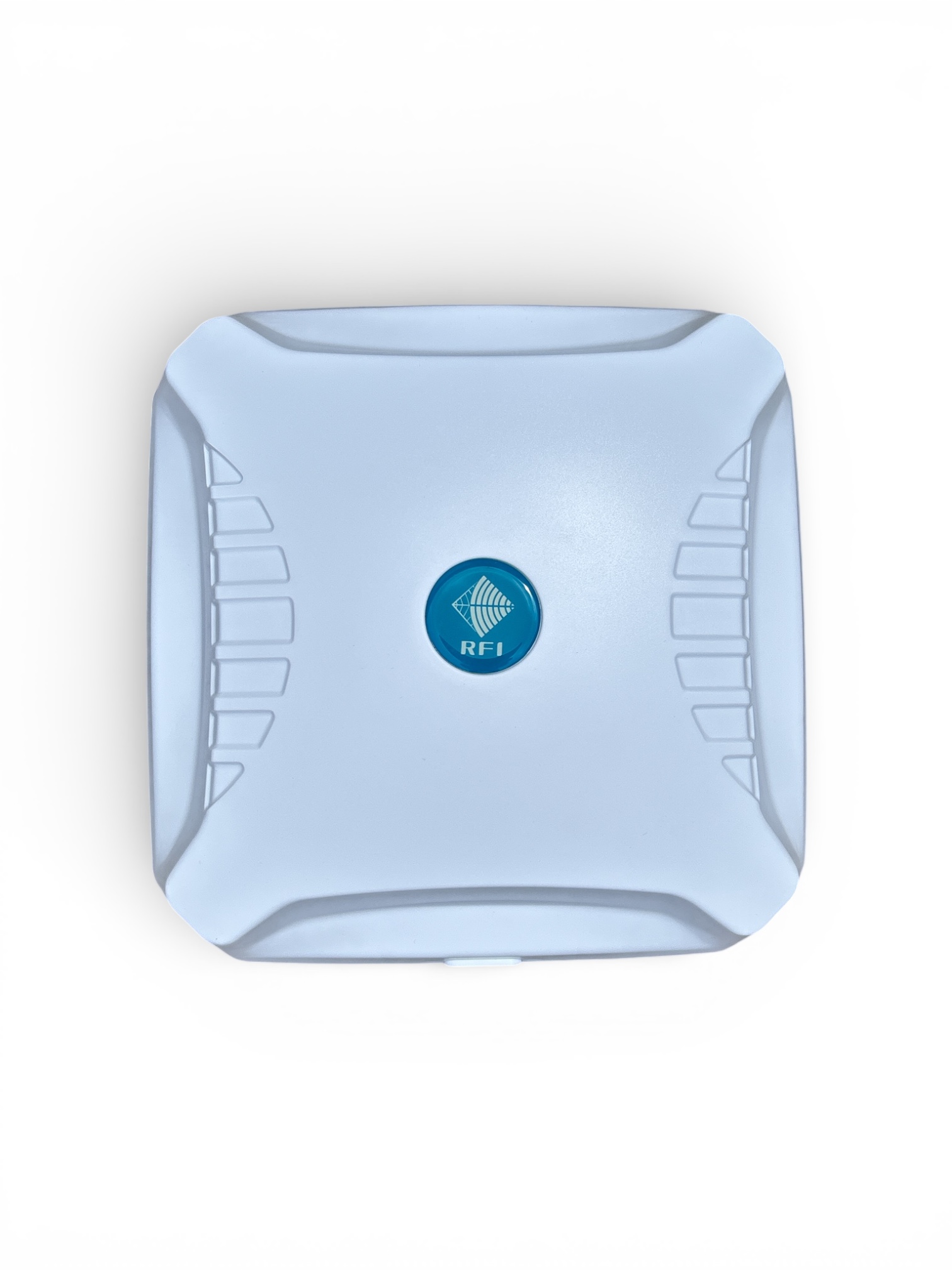

RFI LTE-XPOL-002-5G-NF MIMO Antenna
RFI LTE-XPOL-002-5G-NF MIMO Antenna
$309.00
The LTE-XPOL-002-5G(-NF) is the third generation of this very popular Cross Polarised (LTE-XPOL-002-V2), cellular band, 2×2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. We have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and a new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.
In stock
In stock
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 40 × 31 × 16 cm |
The RFI LTE-XPOL-002-5G-NF MIMO antenna includes the newer 3400 – 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz.
In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and has 2 x integrated N female bulkhead connectors in the base of the antenna.
Features:
– 2-3dB higher gain over all the bands compared to “V2”
– New 3400MHz-3800MHz, 5G band with 11dBi gain
– Consistent broadband performance
– X-Polarised 2×2 MIMO antenna
– Wall or pole mountable
– Lightweight & rugged
– Weatherproof & waterproof (IP65)
– High pattern consistency across bands for 4G/5G carrier aggregation
– 2-3dB higher gain over all the bands compared to “V2”
– New 3400MHz-3800MHz, 5G band with 11dBi gain
– Consistent broadband performance
– X-Polarised 2×2 MIMO antenna
– Wall or pole mountable
– Lightweight & rugged
– Weatherproof & waterproof (IP65)
– High pattern consistency across bands for 4G/5G carrier aggregation
