ECE 5G Directional Panel Antenna
ECE 5G Directional Panel Antenna
$139.00
The ECE 5G Directional Panel Antenna is a commercial grade solution designed to enhance the performance of your wireless network.
In stock
In stock
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 7 × 18 × 21 cm |
The ECE 5G Directional Panel Antenna is a commercial grade construction designed to enhance the performance of a wireless broadband network or cellular device. It covers the full 4G LTE and 5G NR bands from 698-960MHz /1710-4000MHz, to offer future proof compatibility to all network operators.
The ECE 5G Directional Panel Antenna has a compact design with a high gain output making it ideal for in building coverage solutions or DAS systems, wireless broadband coverage and Cel-Fi repeater installations. It is PIM rated to -153dBc @ 2 x 43dBm Carriers making it one of the best in class panel antennas on the market.

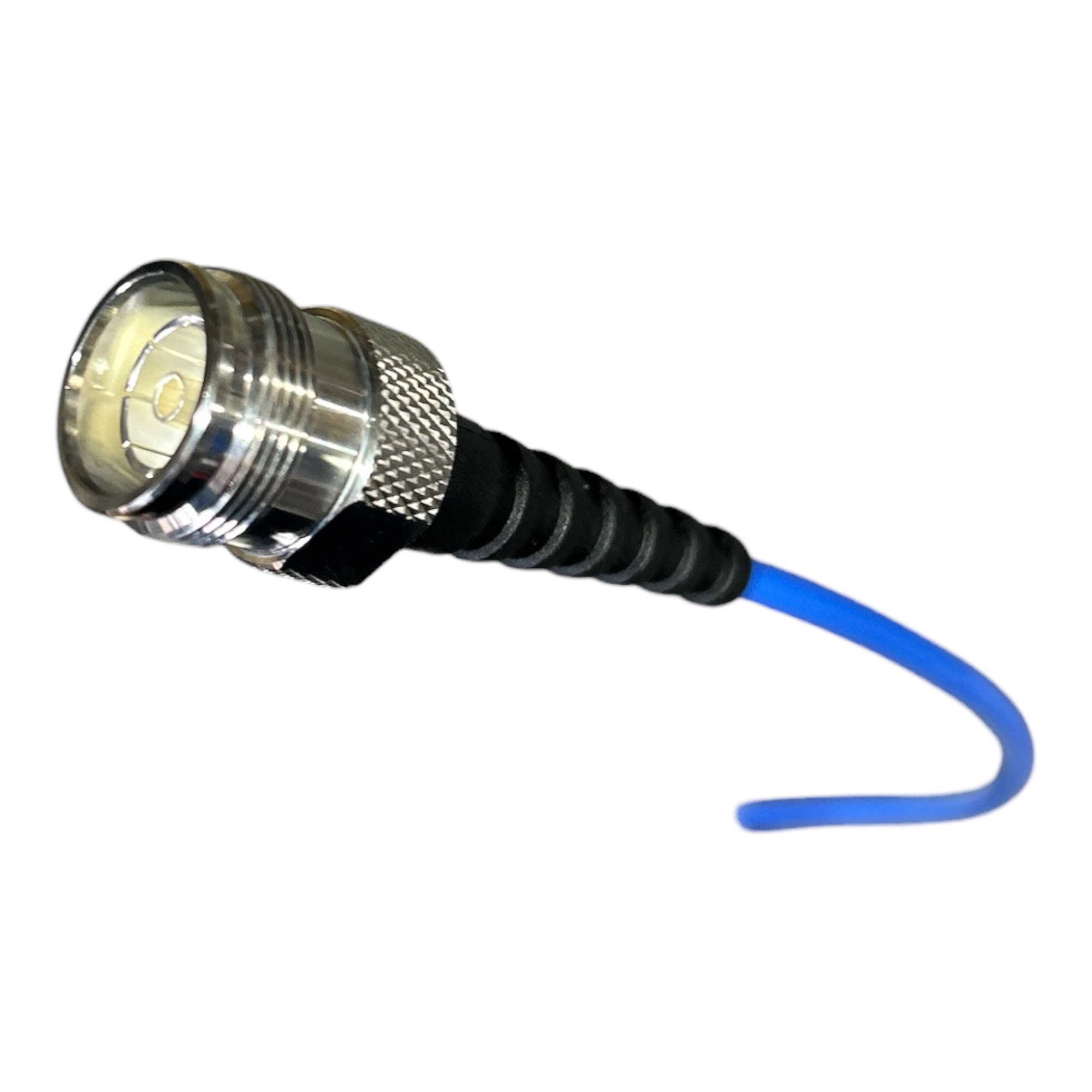

The antenna is supplied as a ready to install kit which includes the antenna, adjustable tilt pole mounting bracket and a 300mm RG141 semi rigid tail terminated with a female 4.3/10 female connector.
Features:
- 5/8dBi from 698-960 / 1710-4000Mhz
- IP65 rated housing suitable for either indoor or outdoor installation
- Includes the adjustable tilt pole mount
| Frequency | 698-960MHz / 1710-4000Mhz |
| Nominal Gain dBi | 5 – 8dBi |
| Power W | 50W |
| Impedance | 50 Ohm |
| PIM | -153dBc @ 2 x 43dBm |
| VSWR | < 1.8:1 |
| Polarisation | Vertical |
| Vertical Beamwidth | 73° |
| Horizontal Beamwidth | 80° |
| Front/Back Ratio dB | >12 & >18 |
| Construction | White ABS RAL9003 radome with stainless steel backing plate |
| Dimensions mm | 200 (H) x 180 (W) x 62 (D) |
| Weight (kg) | 0.40 |
| Termination | 4.3/10 female on 300mm RG141 Semi Rigid cable tail |
| Tuning | Full. No Tuning Required |
| Operating Temp | -55deg to +60deg |
