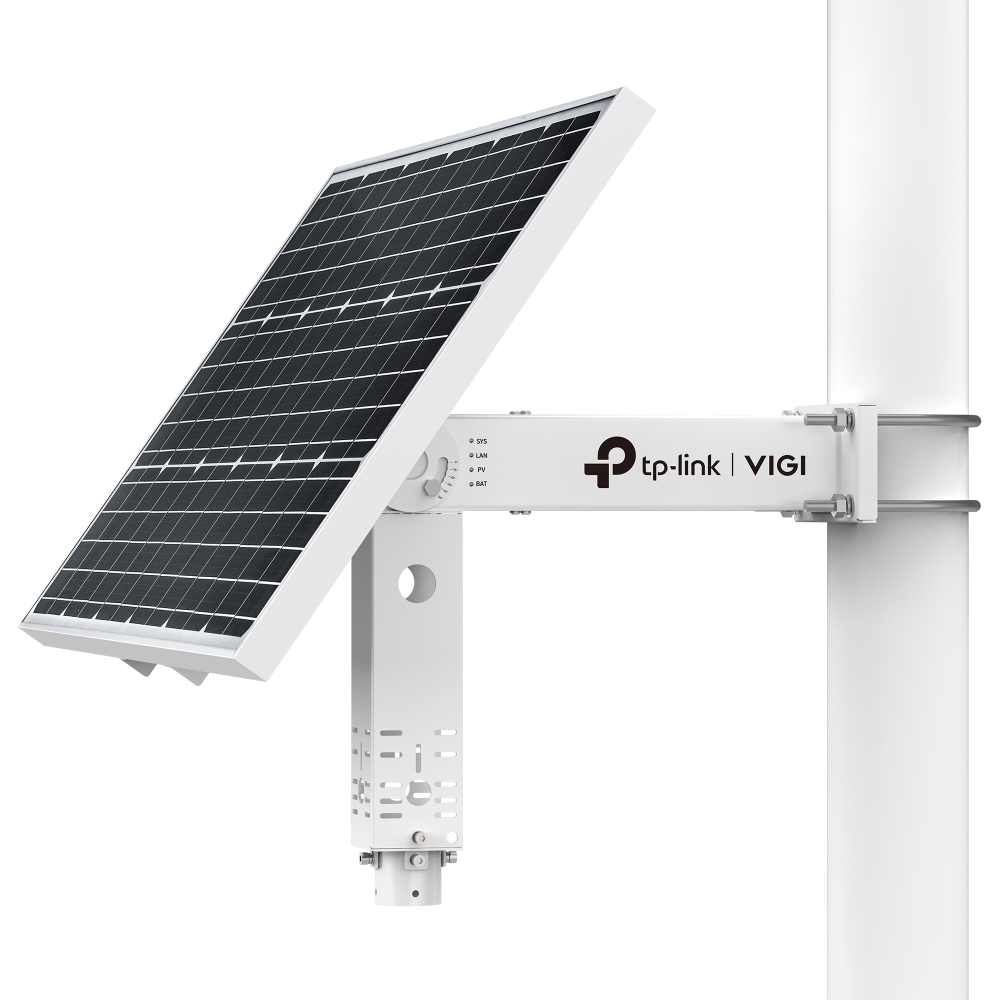

TP-Link VIGI SP9030 90W Intelligent Solar Power Supply System



Reliable Off-Grid Power for Security Cameras

The TP-Link VIGI SP9030 Intelligent Solar Power Supply System provides reliable solar power for security cameras and network equipment in locations where mains electricity isn’t readily available.

With a 90W photovoltaic solar panel, 336.96Wh lithium battery, MPPT charging controller and three DC power outputs, the VIGI SP9030 is designed for remote and temporary surveillance installations.

It is an ideal solution for farms, rural properties, construction sites, remote gates, industrial sites, islands and other locations where running mains power or network cabling may be impractical.

The SP9030 can be combined with compatible VIGI 4G cameras, wireless bridges and other suitable network devices to create a complete off-grid security system.



Key Features

• 90W industrial-grade solar panel
• 336.96Wh lithium battery capacity
• 31.2Ah / 10.8V lithium battery
• Three DC power output ports
• MPPT solar charging controller
• Intelligent auxiliary battery heating
• IP66 weatherproof protection
• -30°C to 60°C discharge temperature with auxiliary heating
• -30°C to 45°C charging temperature with auxiliary heating
• Adjustable solar panel angle
• 5°, 15°, 25°, 35°, 45° and 55° adjustment
• Remote monitoring and management
• Remote firmware updates
• Remote reboot and reset
• Battery level monitoring
• Real-time load monitoring
• Power consumption statistics
• Over-discharge protection
• High and low temperature protection
• Suitable for compatible VIGI 4G cameras and network equipment



Solar Power for Remote Security Cameras

One of the biggest challenges when installing CCTV in a remote location is providing reliable electricity.

Running mains power to a remote gate, paddock, construction site or outbuilding can be expensive and time-consuming.

The VIGI SP9030 solar power system provides an alternative by generating electricity from sunlight and storing energy in its integrated lithium battery.

This makes it possible to install compatible surveillance equipment in locations where conventional mains power isn’t available.

A typical installation can use:

Solar panel → VIGI SP9030 → 4G security camera

The camera can then use a 4G mobile connection for remote video access, creating a practical off-grid solar security camera system.

The actual runtime and performance will depend on the camera or network equipment connected, local sunlight conditions, panel orientation, temperature and other installation factors.



90W Industrial-Grade Solar Panel

The VIGI SP9030 uses a 90W photovoltaic solar panel designed for outdoor deployment.

TP-Link specifies a panel conversion efficiency of up to 21.6% and a stated lifespan of more than 25 years.

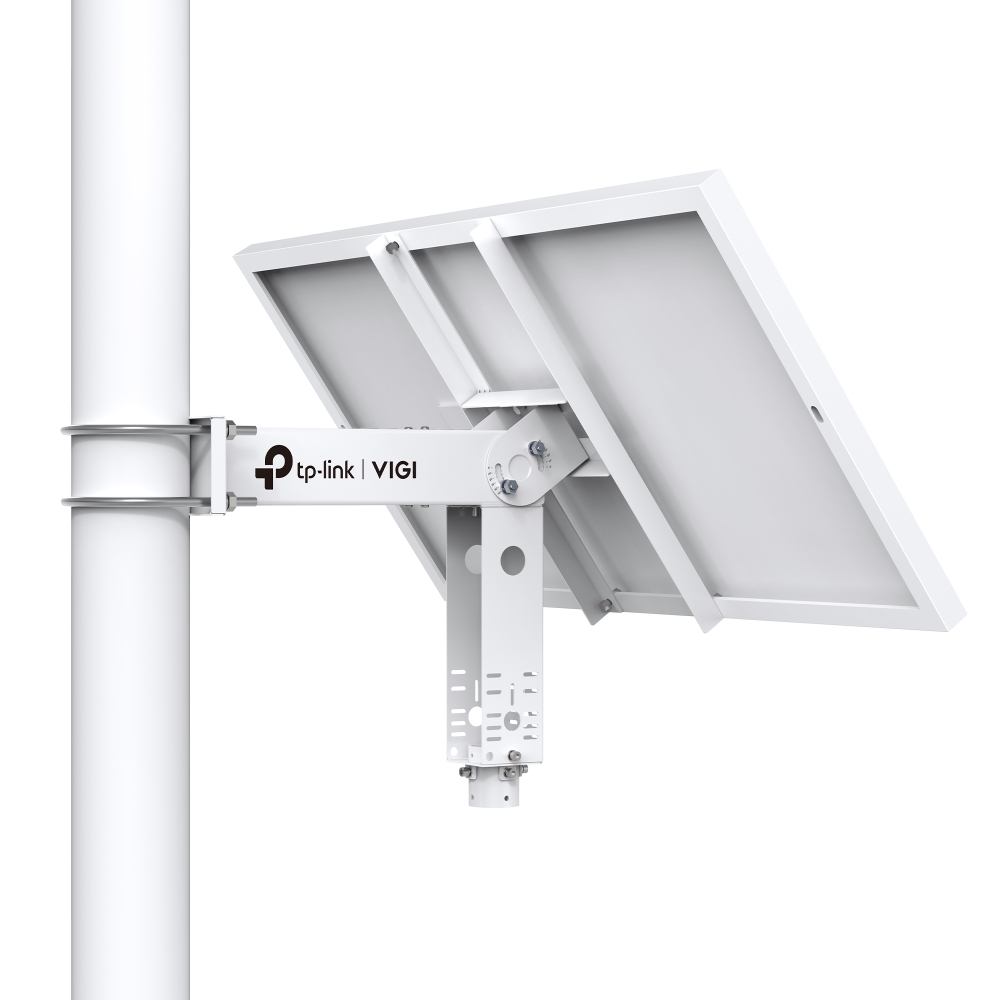

The panel can be manually adjusted through six angle positions:

• 5°
• 15°
• 25°
• 35°
• 45°
• 55°

Adjusting the panel angle allows installers to optimize the solar installation for the location and available sunlight.

For Australian installations, correct panel positioning is particularly important because solar exposure can vary considerably depending on location, season and surrounding obstructions.



336.96Wh Lithium Battery

The SP9030 incorporates a 336.96Wh lithium battery.

The battery specification is:

• Battery type: Lithium
• Capacity: 31.2Ah
• Voltage: 10.8V
• Maximum output voltage: 12.6V
• Rated battery energy: 336.96Wh
• Battery life: more than 500 cycles*

The stored energy allows connected equipment to continue operating when solar generation is unavailable.

This is particularly important overnight and during periods of reduced sunlight.



Important: Solar Runtime Depends on the Installation

There isn’t a single guaranteed number of hours or days that the SP9030 will operate every camera.

Runtime depends on:

• Camera power consumption
• Network equipment power consumption
• Solar exposure
• Panel orientation
• Seasonal conditions
• Cloud and rain
• Temperature
• Battery condition
• Connected equipment
• Required operating schedule

TP-Link’s own published runtime examples are based on specific equipment combinations and simulated meteorological data, so they should be treated as reference figures rather than a guarantee for every Australian installation.



MPPT Solar Charging Controller

The VIGI SP9030 includes an MPPT (Maximum Power Point Tracking) charging controller.

MPPT technology helps optimize the power available from the solar panel and manage charging of the battery.

TP-Link states that its MPPT controller can increase charging efficiency by 20% compared with PWM controllers under its specified comparison.

For an off-grid surveillance installation, efficient solar charging is important because the system needs to recover energy during available sunlight while continuing to supply connected equipment.



Intelligent Auxiliary Battery Heating

The SP9030 includes intelligent auxiliary heating technology within its smart battery system.

This is designed to help the battery operate across a wider temperature range.

TP-Link specifies:

Charging:

• 0°C to 45°C under standard conditions
• -30°C to 45°C with intelligent auxiliary heating

Discharging:

• -20°C to 60°C under standard conditions
• -30°C to 60°C with intelligent auxiliary heating

This feature can be particularly useful for installations exposed to cold environmental conditions.



IP66 Weatherproof Design

The VIGI SP9030 is designed for outdoor deployment and carries an IP66 weatherproof rating.

The system is also specified for operation in a wide temperature range, with auxiliary heating supporting operation from -30°C to 60°C.

TP-Link also specifies hail resistance for the system, making the SP9030 suitable for demanding outdoor and remote applications.



Three DC Power Outputs

The VIGI SP9030 provides three DC power outputs for compatible equipment.

DC Output 1

9V–12.6V DC / 2A

DC Output 2

9V–12.6V DC / 2A

DC Output 3

12V DC / 2A

The system also includes a 10/100 Mbps RJ45 interface and photovoltaic panel connector.

Always confirm the voltage, current and power requirements of connected equipment before installation.



Remote Monitoring and Management

The VIGI SP9030 provides intelligent management features designed to make remote installations easier to monitor and maintain.

Through the VIGI management ecosystem, users can monitor important system information and perform selected management functions remotely.

Features include:

• Battery level monitoring
• Real-time load status
• Power consumption statistics
• Load control
• Over-discharge protection
• Temperature protection
• Firmware remote updates
• Remote reboot
• Remote reset
• Remote message notifications
• Local LAN management
• Account management
• Web management
• Schedule management

For remote security installations, these features can help reduce unnecessary site visits and make it easier to identify power-related issues.



Ideal Applications for the VIGI SP9030



Farm Security Cameras

The SP9030 is well suited to rural properties where cameras may need to be installed a long distance from the main residence or electrical supply.

Use a compatible camera to monitor:

• Farm entrances
• Remote gates
• Sheds
• Machinery areas
• Driveways
• Stock areas
• Perimeters
• Storage areas



Rural & Remote Properties

For properties without convenient mains power, a solar-powered surveillance system can eliminate the need to run electrical cabling to every camera location.

The SP9030 can provide the power component of a suitable remote surveillance installation.



Construction Sites

Construction sites frequently require temporary security monitoring before permanent electrical infrastructure is available.

The SP9030 can provide solar power for compatible cameras and networking equipment, making it suitable for temporary surveillance deployments.



Remote Gates & Entrances

A remote gate is often one of the most useful locations for a security camera—and one of the hardest locations to provide power.

A suitable combination of the SP9030, compatible camera and 4G connectivity can provide remote monitoring without requiring a mains connection at the gate.



Industrial & Commercial Sites

The system can be used for suitable outdoor surveillance applications around:

• Industrial yards
• Storage areas
• Remote buildings
• Access roads
• Equipment compounds
• Warehousing facilities
• Temporary sites



Temporary Surveillance

The modular design of the VIGI solar power system makes it suitable for certain temporary and semi-permanent surveillance applications.

This can be useful where security infrastructure needs to be deployed quickly without waiting for permanent electrical work.

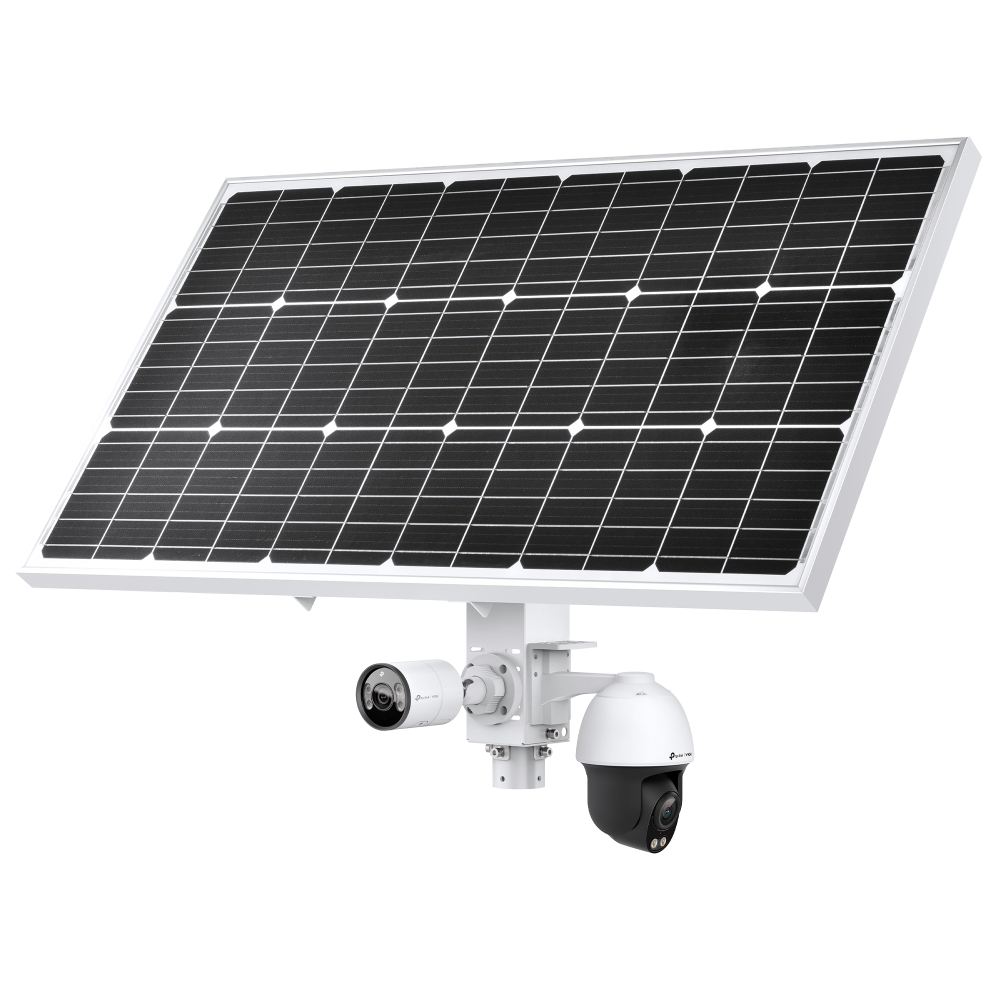

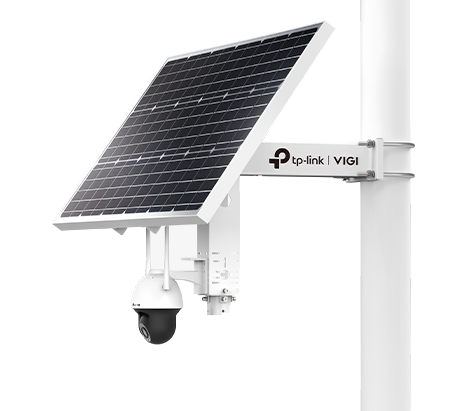

VIGI SP9030 + 4G Security Camera

One of the strongest applications for the SP9030 is pairing it with a compatible 4G security camera.

A 4G camera removes the requirement for a traditional wired internet connection, while the SP9030 provides off-grid power.

The result can be a complete remote surveillance solution:

Solar power + battery storage + 4G camera + mobile network

This is particularly useful for farms, rural properties, remote gates and construction sites.

TP-Link lists the SP9030 as compatible with typical combinations involving VIGI 4G cameras, wireless bridges with bullet cameras, and wireless bridges with pan-tilt cameras.



VIGI SP9030 Specifications

Specification	VIGI SP9030
Solar Panel Power	90W
Solar Panel Voltage	18V
Solar Panel Size	998 × 516 × 30mm
Battery Type	Lithium
Battery Capacity	31.2Ah
Battery Voltage	10.8V
Battery Energy	336.96Wh
Maximum Output Voltage	12.6V
Battery Life	More than 500 cycles*
DC Outputs	3
DC Output 1	9–12.6V DC / 2A
DC Output 2	9–12.6V DC / 2A
DC Output 3	12V DC / 2A
Solar Charging	MPPT
Panel Angle Adjustment	5° / 15° / 25° / 35° / 45° / 55°
RJ45 Interface	1 × 10/100 Mbps
Weather Protection	IP66
Charging Temperature	-30°C to 45°C with auxiliary heating
Discharging Temperature	-30°C to 60°C with auxiliary heating
Remote Management	Yes
Remote Firmware Update	Yes
Remote Reboot	Yes
Remote Reset	Yes
Over-Discharge Protection	Yes
Temperature Protection	Yes
Compatible Pole Diameter	80–120mm
Product Weight	17.5kg

Specifications based on TP-Link’s current Australian product information.



What’s Included?

The VIGI SP9030 package includes:

• VIGI SP9030
• Quick Start Guide
• Waterproof cable attachments
• Mounting accessories

The camera and networking equipment are not included unless specifically stated as part of a separate bundle. TP-Link confirms that its solar system product is designed to be combined with compatible cameras and network equipment.



Is the VIGI SP9030 Right for Your Installation?



The right solar power system depends on more than the camera model.

Before installing an off-grid security camera, it is important to consider:

1. Camera power consumption
Determine the average and maximum power requirements of the camera.

2. Network equipment
A 4G modem, wireless bridge or other network device will also consume power.

3. Solar exposure
Trees, buildings and other obstructions can significantly affect solar generation.

4. Location
Solar requirements vary depending on where the system is installed in Australia.

5. Battery autonomy
Consider how long the system needs to operate during periods of poor solar generation.

6. Camera requirements
PTZ cameras, heaters, IR illumination and other features can increase power consumption.

Total Antenna can help you select the appropriate equipment for your installation rather than simply matching a camera to a solar panel.



Why Buy the VIGI SP9030 from Total Antenna?

Total Antenna supplies networking, antenna, connectivity and surveillance equipment for Australian installations.

The VIGI SP9030 is particularly useful when you need to combine solar power, 4G connectivity, antennas and security cameras into a remote surveillance solution.

If you’re unsure whether the SP9030 will provide enough power for your camera and network equipment, contact Total Antenna before ordering.

We can help you work through the requirements of your installation and select compatible equipment.



Frequently Asked Questions



What is the TP-Link VIGI SP9030?

The VIGI SP9030 is an intelligent solar power supply system designed to provide off-grid power for compatible security cameras and network equipment.



How much solar power does the VIGI SP9030 have?

The SP9030 uses a 90W photovoltaic solar panel. TP-Link specifies a 90W panel with an 18V operating voltage.



How much battery storage does the SP9030 have?

The SP9030 uses a 336.96Wh lithium battery, specified as 31.2Ah at 10.8V.



Can the SP9030 power a 4G security camera?

Yes. TP-Link specifically lists combinations of the SP9030 with VIGI 4G cameras. The exact camera and network equipment must be compatible with the SP9030’s DC output specifications.



Is the VIGI SP9030 waterproof?

The SP9030 has an IP66 weatherproof rating, making it suitable for outdoor installations when installed according to the manufacturer’s instructions.



Can the solar panel angle be adjusted?

Yes. The panel supports manual adjustment to 5°, 15°, 25°, 35°, 45° and 55°.



Does the SP9030 work in cold temperatures?

Yes. Intelligent auxiliary heating allows the battery system to operate over an extended temperature range. TP-Link specifies charging down to -30°C and discharging down to -30°C when auxiliary heating is used.



How long will the SP9030 power a security camera?

There is no single runtime figure because it depends on the camera’s power consumption, network equipment, solar exposure, weather, panel angle and other factors.

TP-Link’s published runtime examples are based on specific equipment combinations and simulated weather data and should be treated as reference values rather than guaranteed Australian runtime.



Can I use the SP9030 for a farm security camera?

Yes. The SP9030 is suitable for consideration in remote applications such as farmland, remote gates and other locations where mains power is unavailable. A compatible camera and suitable network connection are required.



Does the SP9030 include a camera?

No. The SP9030 is the solar power supply system. A compatible security camera and network connection need to be purchased separately unless you purchase a specific camera bundle.



Can the SP9030 power multiple devices?

It provides three DC output ports, but the connected equipment must remain within the specified voltage and current limits. Always check the combined power requirements before installation.



Do I need 4G for a solar security camera?

Not necessarily. The SP9030 can be combined with different networking configurations, including 4G cameras and wireless bridges. The correct setup depends on whether internet connectivity is available at the installation location.



Need a Solar-Powered Security Camera System?

If you need CCTV at a location without mains power or a traditional network connection, the TP-Link VIGI SP9030 can provide the solar power foundation for a remote surveillance system.

Pair it with a compatible VIGI 4G security camera, wireless networking equipment and the appropriate antenna or connectivity solution to create a surveillance system designed for your site.

Not sure what you need? Contact Total Antenna for help selecting the right solar, camera, 4G and antenna equipment for your installation.

Comparison Table

	VIGI SP9030	VIGI SP18090
Solar capacity	90W	180W
Battery	336.96Wh	93.6Ah / 10.95V
Solar panels	1 × 90W	2 × 90W
DC outputs	3	3
MPPT	Yes	Yes
Remote management	Yes	Yes
IP rating	IP66	IP66
Best suited to	Lower-power remote systems	Higher-power systems



The right system depends on the power consumption of your camera and network equipment, solar conditions and required battery autonomy. Contact Total Antenna if you’re unsure which system is suitable.



VIGI SP9030 Installation and Support Link



VIGI SP18090 Solar Power Supply System | TP-Link
