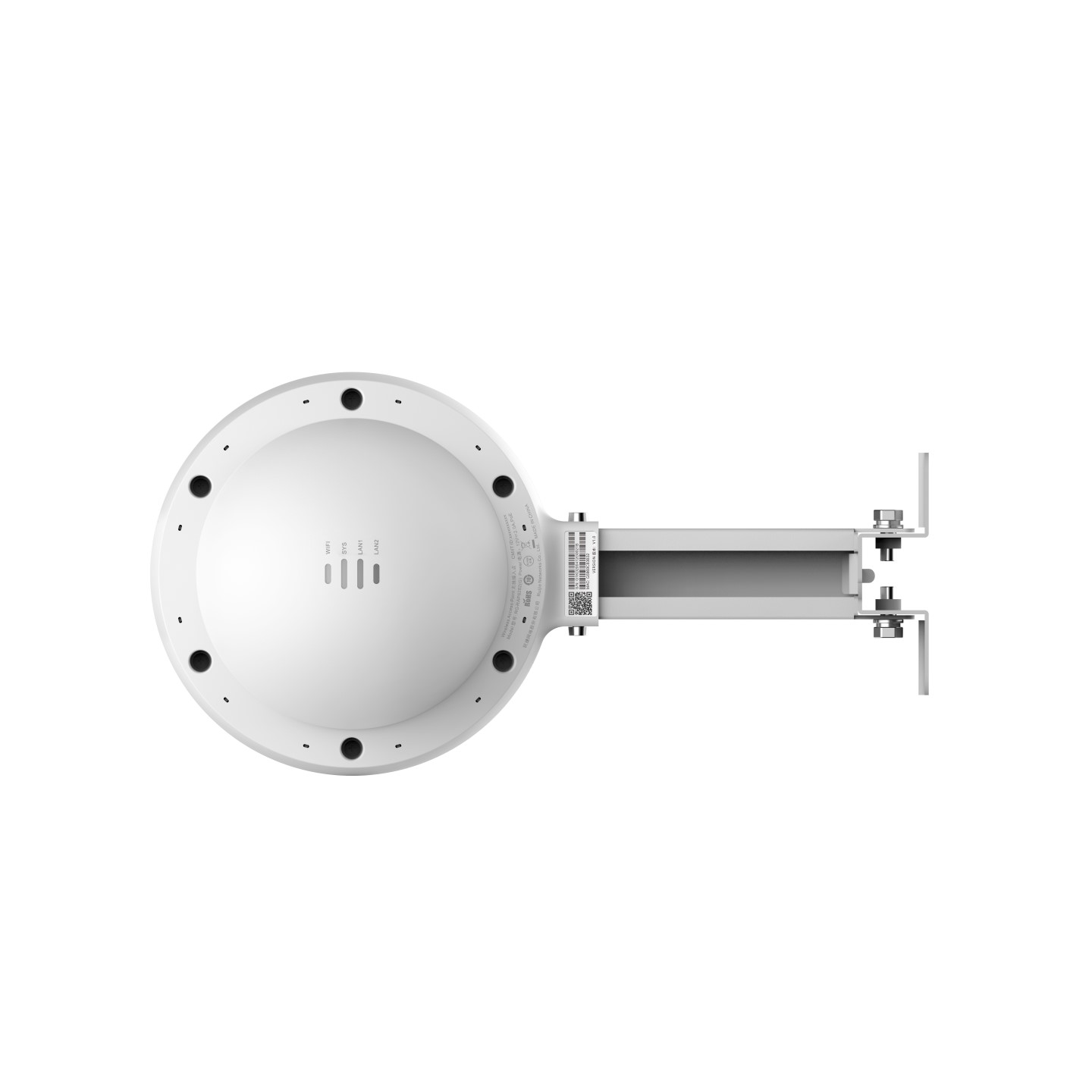

Ruijie Reyee RG-RAP6262(G) Wi-Fi 6 AX1800 Outdoor Access Point



High-performance outdoor Wi-Fi 6 with AX1800 speeds, IP68 protection, omnidirectional coverage and Reyee Mesh technology.

The Ruijie Reyee RG-RAP6262(G) is a rugged Wi-Fi 6 AX1800 outdoor access point designed to deliver fast, reliable wireless connectivity across large outdoor areas.

With dual-band Wi-Fi 6, four built-in omnidirectional antennas, IP68 protection, 2 × Gigabit Ethernet ports and Reyee Mesh, it is an ideal solution for caravan parks, hotels, resorts, parks, warehouses, stadiums, campuses, car parks and other outdoor environments.

With wireless speeds of up to 1,774 Mbps, the RG-RAP6262(G) provides high-capacity outdoor Wi-Fi for businesses and organizations that need dependable connectivity beyond the walls of a building.



Why Choose the Ruijie RG-RAP6262(G)?



• Wi-Fi 6 AX1800 – Combined wireless speeds up to 1,774 Mbps
• Dual-band performance – Up to 573 Mbps on 2.4 GHz and 1,201 Mbps on 5 GHz
• Omnidirectional outdoor Wi-Fi – Four built-in high-gain antennas
• Long-range coverage – Field-tested coverage of up to 100 m at 2.4 GHz and 300 m at 5 GHz*
• IP68-rated enclosure – Designed for demanding outdoor conditions
• 6 kV lightning protection – Added protection for outdoor installations
• Reyee Mesh – Expand Wi-Fi coverage without additional network cabling
• Free cloud management – Remotely monitor and manage your wireless network
• 2 × Gigabit Ethernet ports – Flexible wired connectivity
• PoE+ or DC power – Flexible installation options
• Up to 256 clients – Suitable for busy outdoor environments

*Actual wireless coverage varies depending on environmental conditions, installation, interference and client devices. Ruijie’s published coverage figures are based on field testing.



Fast Wi-Fi 6 Outdoor Connectivity

Outdoor networks often need to support many users across a wide area. The RG-RAP6262(G) combines Wi-Fi 6 technology and 2×2 MU-MIMO across both the 2.4 GHz and 5 GHz bands to provide efficient wireless connectivity for multiple devices.

The access point delivers:

2.4 GHz: up to 573 Mbps
5 GHz: up to 1,201 Mbps
Combined: up to 1,774 Mbps

This makes the RG-RAP6262(G) a strong choice for outdoor guest Wi-Fi, business networks, smart devices and high-density connectivity requirements.



Long-Range Omnidirectional Wi-Fi

The RG-RAP6262(G) features four integrated high gain omnidirectional antennas, providing broad wireless coverage around the access point.

Ruijie specifies a maximum field-tested coverage radius of up to 100 meters on 2.4 GHz and 300 meters on 5 GHz. Actual performance will depend on the environment, obstacles, interference, installation height and receiving device.

This makes the RG-RAP6262(G) particularly suitable for open outdoor environments where a conventional indoor access point would not provide adequate coverage.

Ideal Outdoor Applications

The RG-RAP6262(G) can be deployed in:

• Caravan parks and holiday parks
• Hotels and resorts
• Parks and recreational areas
• Stadiums and sporting facilities
• School and university campuses
• Warehouses and industrial sites
• Car parks
• Plazas and town centers
• Traffic stations
• Villas and large residential developments
• Outdoor hospitality areas



IP68 Outdoor Protection

Outdoor Wi-Fi equipment needs to withstand conditions that indoor access points cannot.

The RG-RAP6262(G) features an IP68-rated design with protection against water and dust ingress. It is also designed to withstand moisture, flame and wind erosion, making it suitable for demanding outdoor deployments.

The operating temperature range is -30°C to +65°C, while integrated 6 kV lightning protection provides additional resilience for outdoor installations.



Expand Coverage with Reyee Mesh

Need to cover a larger property?

Reyee Mesh allows additional compatible access points to be added to expand your outdoor wireless network without requiring a dedicated Ethernet cable between every access point.

This can simplify installations across large outdoor sites such as caravan parks, resorts, campuses and recreational facilities.

Reyee Mesh is particularly useful where running network cabling to every outdoor AP would be difficult, expensive or impractical.



Easy Outdoor Installation

The RG-RAP6262(G) uses a rack-separated mounting design intended to make installation easier, including installations at height.

The access point supports wall and pole mounting, making it suitable for a wide range of commercial outdoor deployments.

Its distinctive UFO-style housing also provides a clean, modern appearance compared with conventional outdoor wireless equipment.



Manage Your Outdoor Wi-Fi from the Cloud

Managing multiple outdoor access points doesn’t have to mean visiting every installation.

With Reyee Cloud management, network administrators can remotely monitor and manage compatible wireless infrastructure, including features such as remote monitoring, remote Wi-Fi management, cloud portal authentication and wireless optimization.

This is especially useful for businesses operating Wi-Fi across multiple buildings, outdoor areas or sites.



Flexible Power and Connectivity

The RG-RAP6262(G) includes two 10/100/1000BASE-T Gigabit Ethernet ports and supports PoE+ and DC power, providing flexibility when planning an outdoor installation.

For PoE deployments, the access point can receive power through a compatible PoE+ infrastructure, helping reduce the need for a separate local power connection. DC power is also supported.

Note: Check your chosen PoE switch or injector for compatibility and power requirements before installation.



RG-RAP6262(G) Specifications



Feature	Specification
Product	Ruijie Reyee RG-RAP6262(G)
Product type	Outdoor wireless access point
Wi-Fi generation	Wi-Fi 6
Wi-Fi class	AX1800
Maximum wireless rate	1,774 Mbps
2.4 GHz speed	573 Mbps
5 GHz speed	1,201 Mbps
Radio design	Dual-radio, 4 spatial streams
MU-MIMO	2×2 on 2.4 GHz and 5 GHz
Antennas	4 × built-in omnidirectional
Ethernet	2 × Gigabit Ethernet
Maximum clients	Up to 256 with both bands enabled
Outdoor protection	IP68
Lightning protection	6 kV
Operating temperature	-30°C to +65°C
Power	PoE+ / DC
Mounting	Wall / pole
Dimensions	Ø200 × 166 mm
Weight	≤1.2 kg
Mesh	Reyee Mesh
Cloud management	Supported

Specifications are based on Ruijie’s current product information.



RG-RAP6262(G) vs Standard Indoor Wi-Fi Access Points



An indoor access point is not always suitable for outdoor deployment. The RG-RAP6262(G) is specifically designed for environments where exposure to weather, dust, temperature changes and other outdoor conditions needs to be considered.

Requirement	RG-RAP6262(G)
Outdoor deployment	✓
Wi-Fi 6	✓
AX1800	✓
Omnidirectional antennas	✓
IP68 protection	✓
Long-range outdoor coverage	✓
Reyee Mesh	✓
PoE+	✓
Cloud management	✓
Wall/pole mounting	✓

Who Is the RG-RAP6262(G) For?

The RG-RAP6262(G) is a practical choice for businesses, installers, IT professionals and organizations that need reliable outdoor Wi-Fi coverage.

It is particularly well suited to sites where users need wireless connectivity across open areas rather than inside a single building.

If you’re deploying Wi-Fi across a caravan park, resort, hotel, warehouse, campus, stadium, park, car park or commercial property, the combination of Wi-Fi 6, omnidirectional coverage, IP68 protection and Reyee Mesh makes the RG-RAP6262(G) a versatile outdoor networking solution.



Frequently Asked Questions



Is the Ruijie RG-RAP6262(G) an outdoor access point?

Yes. The RG-RAP6262(G) is a purpose-built Wi-Fi 6 outdoor access point with an IP68-rated enclosure, omnidirectional antennas and protection designed for demanding outdoor environments.



What is the Wi-Fi speed of the RG-RAP6262(G)?

The RG-RAP6262(G) is an AX1800 Wi-Fi 6 access point with a maximum combined wireless data rate of approximately 1.77 Gbps: up to 573 Mbps on 2.4 GHz and 1,201 Mbps on 5 GHz.



How far does the RG-RAP6262(G) reach?

Ruijie’s field testing indicates a maximum coverage radius of up to 100 meters at 2.4 GHz and 300 meters at 5 GHz. Actual coverage varies according to the environment, installation and client device.



Does the RG-RAP6262(G) support PoE?

Yes. The RG-RAP6262(G) supports PoE+ as well as DC power. Always verify the power requirements and compatibility of your PoE switch or injector before deployment.



Is the RG-RAP6262(G) waterproof?

The RG-RAP6262(G) has an IP68 rating, making it designed for demanding outdoor conditions with protection against dust and water ingress.



Does the RG-RAP6262(G) support Mesh?

Yes. The RG-RAP6262(G) supports Reyee Mesh, allowing compatible access points to be used to extend wireless coverage without requiring additional Ethernet cabling to every AP.



How many devices can connect to the RG-RAP6262(G)?

Ruijie’s specifications list support for up to 256 associated wireless clients when 2.4 GHz and 5 GHz are enabled. Actual usable capacity depends on traffic, applications, interference and network configuration.



Can the RG-RAP6262(G) be pole mounted?

Yes. The access point supports pole and wall mounting, making it suitable for a variety of outdoor installation scenarios.

Order the RG-RAP6262(G) today or contact our team for advice on your outdoor Wi-Fi deployment.
