Ruijie Reyee RG-RAP6260(G) WiFi 6 Outdoor Access Point – AX1800 Long Range PoE Wireless Solution



High-Performance Outdoor WiFi 6 Connectivity with Fibre Uplink Support



The Ruijie Reyee RG-RAP6260(G) is a powerful WiFi 6 AX1800 outdoor access point designed to deliver fast, reliable and secure wireless connectivity in demanding outdoor environments.

Built for businesses, campuses, public areas and industrial deployments, this rugged outdoor AP combines dual band Wi-Fi 6 performance, Gigabit connectivity, PoE+ power, fiber uplink support and IP68 weather protection.

Whether you need outdoor WiFi coverage for a warehouse, resort, school, stadium, car park, construction site or public space, the RG-RAP6260(G) outdoor Wi-Fi access point provides a scalable solution for extending high-speed wireless networks.



Key Features of the RG-RAP6260(G)



WiFi 6 AX1800 Performance for Faster Outdoor Networks



Powered by the latest IEEE 802.11ax WiFi 6 technology, the RG-RAP6260(G) delivers combined wireless speeds of up to 1774 Mbps.

With dual-band operation:

• 5GHz: Up to 1201 Mbps
• 2.4GHz: Up to 573 Mbps

Users experience faster downloads, smoother video streaming, improved connectivity and better performance in environments with many connected devices.



Built for Outdoor Deployments – IP68 Weather Protection



Outdoor networking equipment must withstand harsh conditions. The RG-RAP6260(G) features an industrial grade IP68-rated enclosure, protecting against:

• Dust ingress
• Heavy rain
• Moisture
• Extreme outdoor environments

With an operating temperature range from -40°C to +65°C, this outdoor access point is suitable for challenging climates and continuous outdoor operation.



Long-Distance Outdoor Wireless Coverage



The RG-RAP6260(G) is designed for large outdoor wireless deployments where reliable coverage is essential.

Ideal applications include:

• Outdoor WiFi hotspots
• Schools and universities
• Resorts and hotels
• Parks and recreation areas
• Warehouses and logistics sites
• Industrial facilities
• Stadiums and event locations
• Parking areas

Its built-in omnidirectional antennas provide broad wireless coverage while maintaining stable client connections.



Fibre Uplink Support for Extended Network Deployment

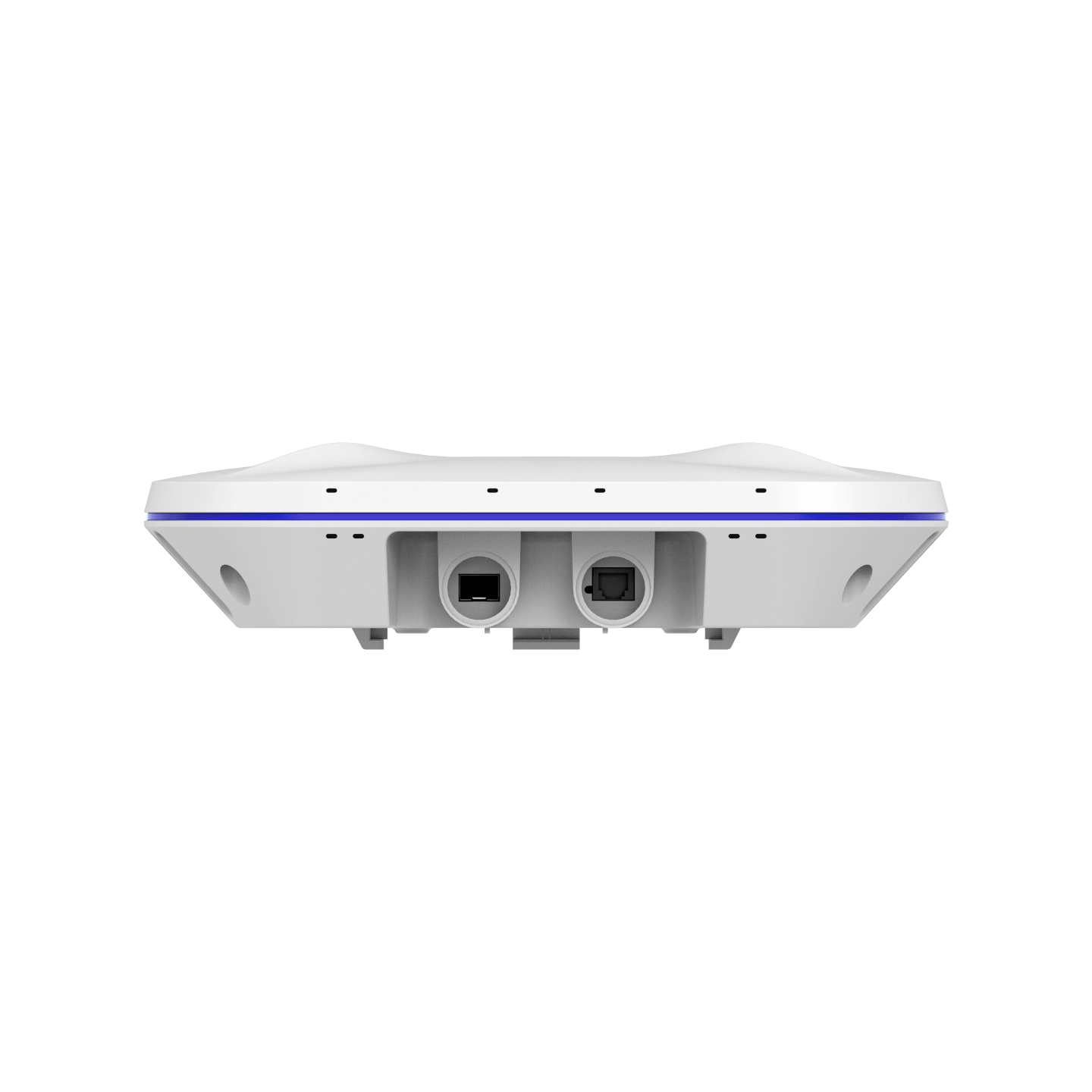

Unlike many outdoor wireless access points, the RG-RAP6260(G) includes a Gigabit SFP fiber port, allowing long distance network connections over fiber.

This makes it ideal for:

• Large campuses
• Remote buildings
• Outdoor infrastructure
• Industrial sites requiring extended connectivity

The fiber interface supports long distance deployments of up to 20 km using single-mode fiber when connected to suitable infrastructure.



Easy Installation with PoE+ Power



The RG-RAP6260(G) supports 802.3at PoE+, allowing power and network data to be delivered through a single Ethernet cable.

Benefits include:

• Faster installation
• Reduced cabling requirements
• Cleaner outdoor deployments
• Easier maintenance

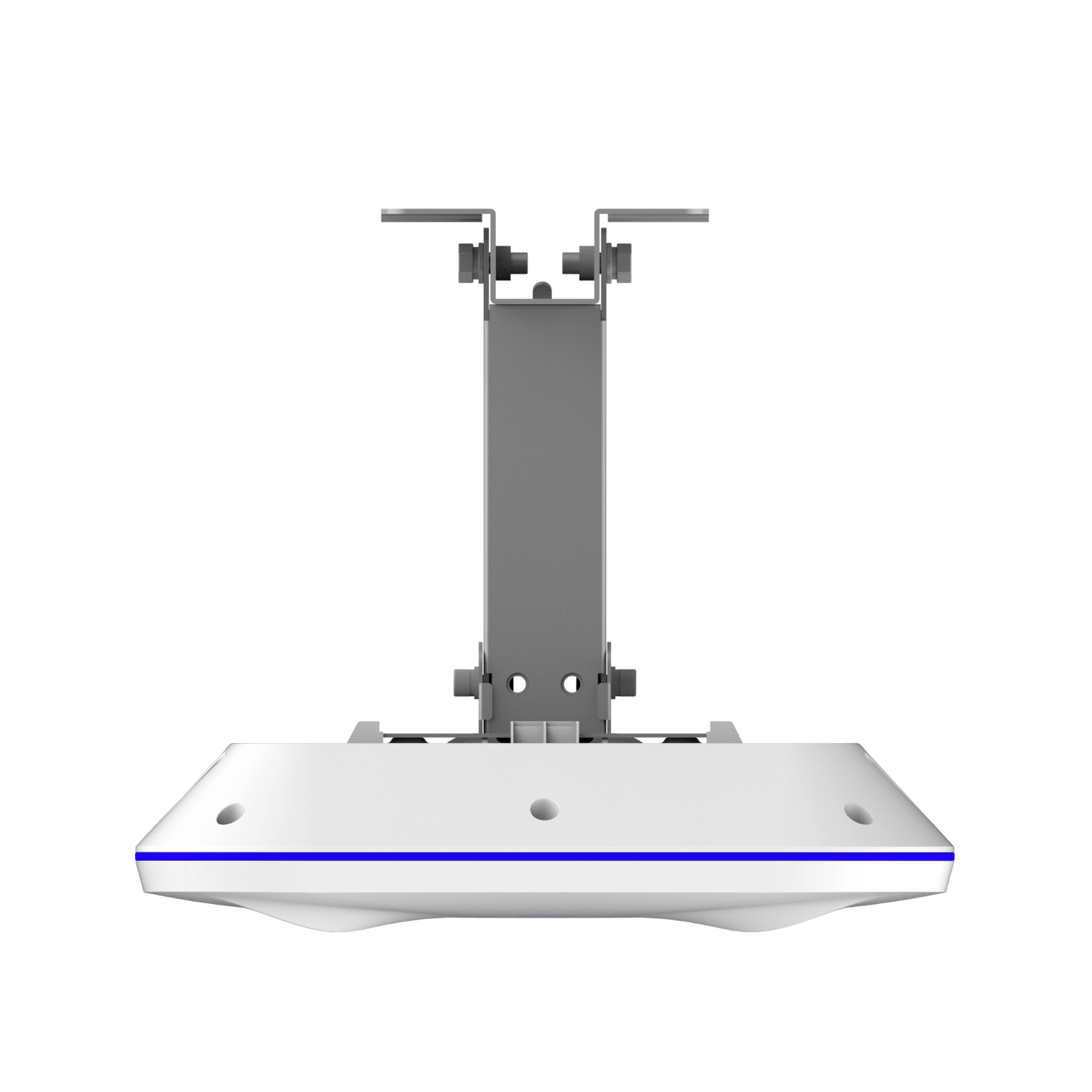

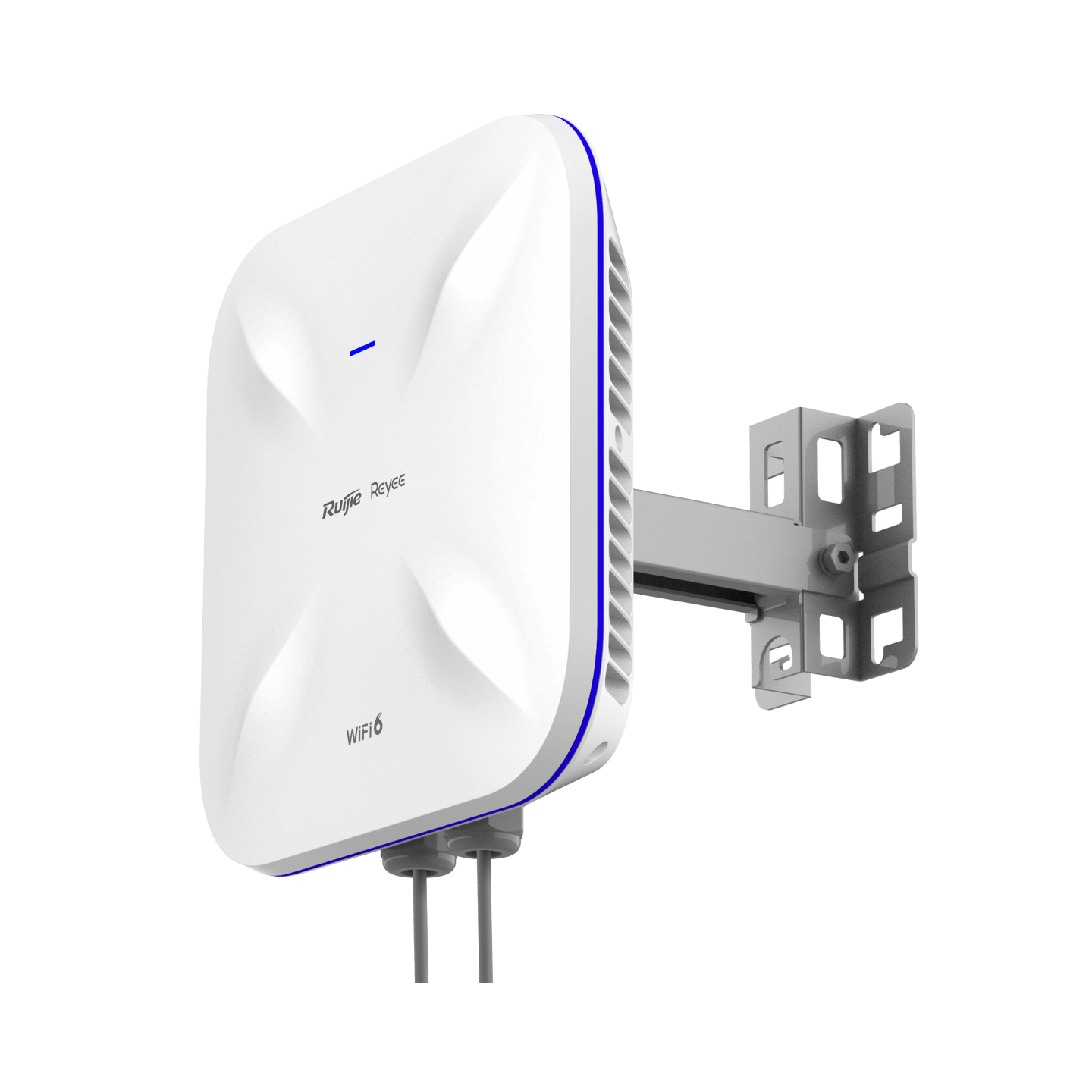

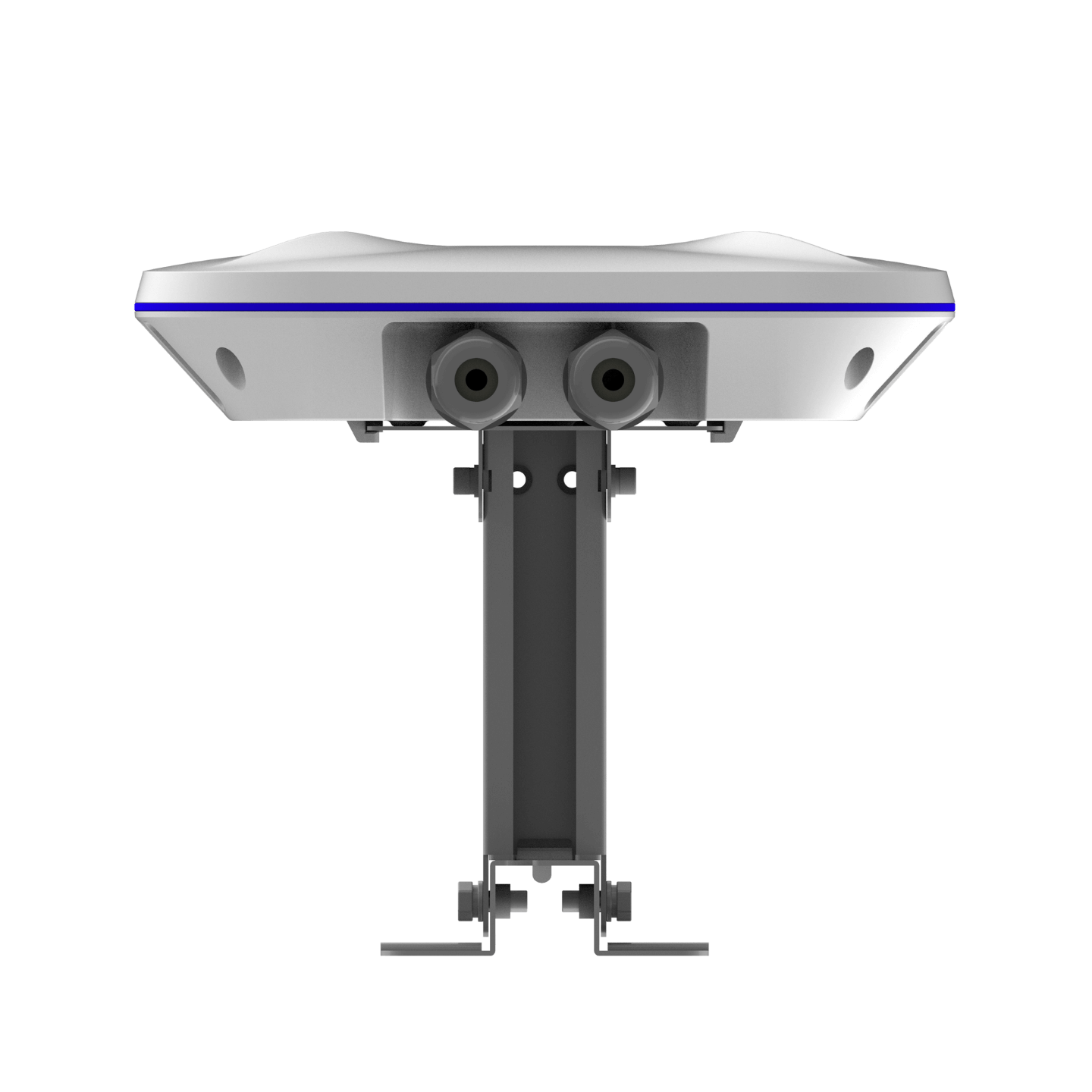

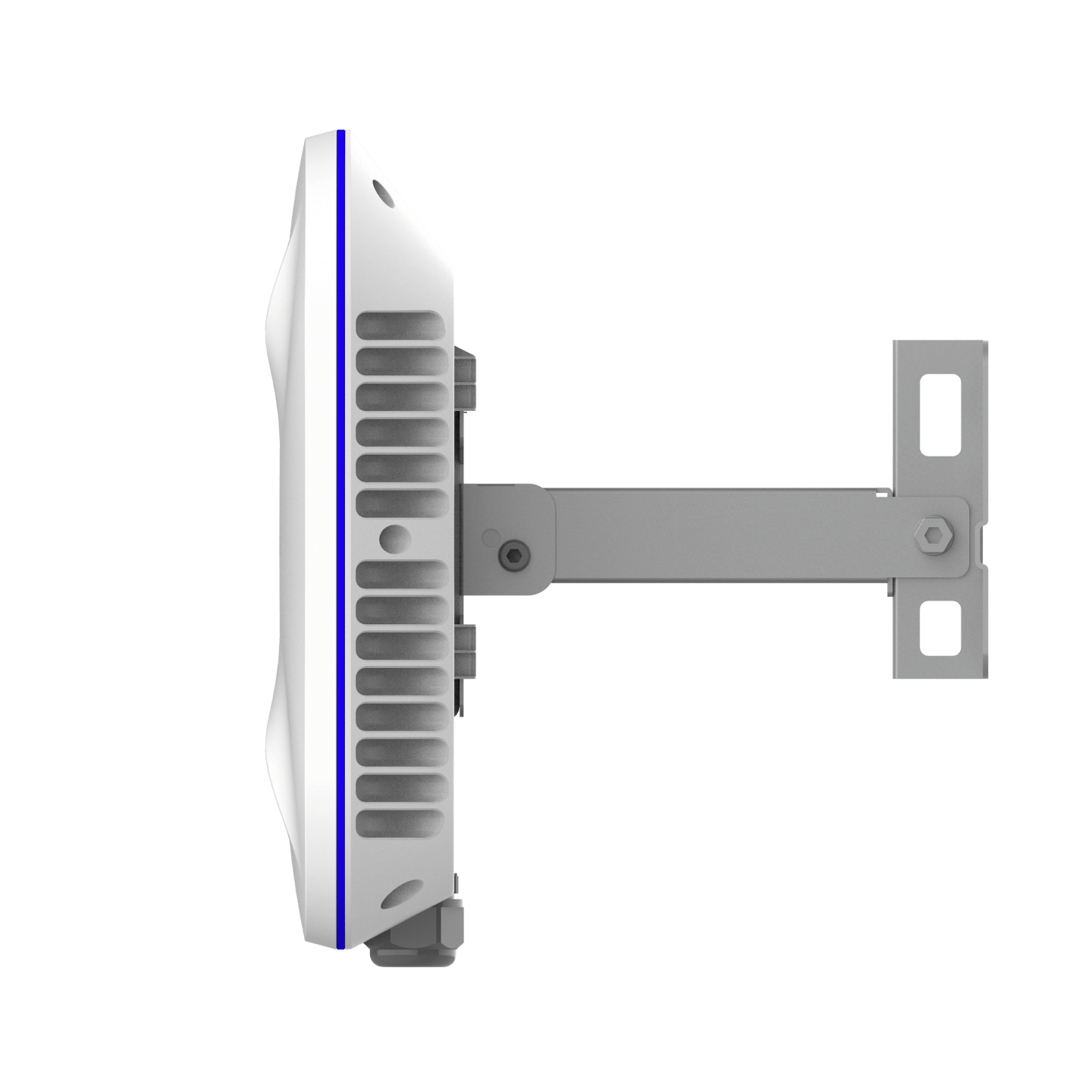

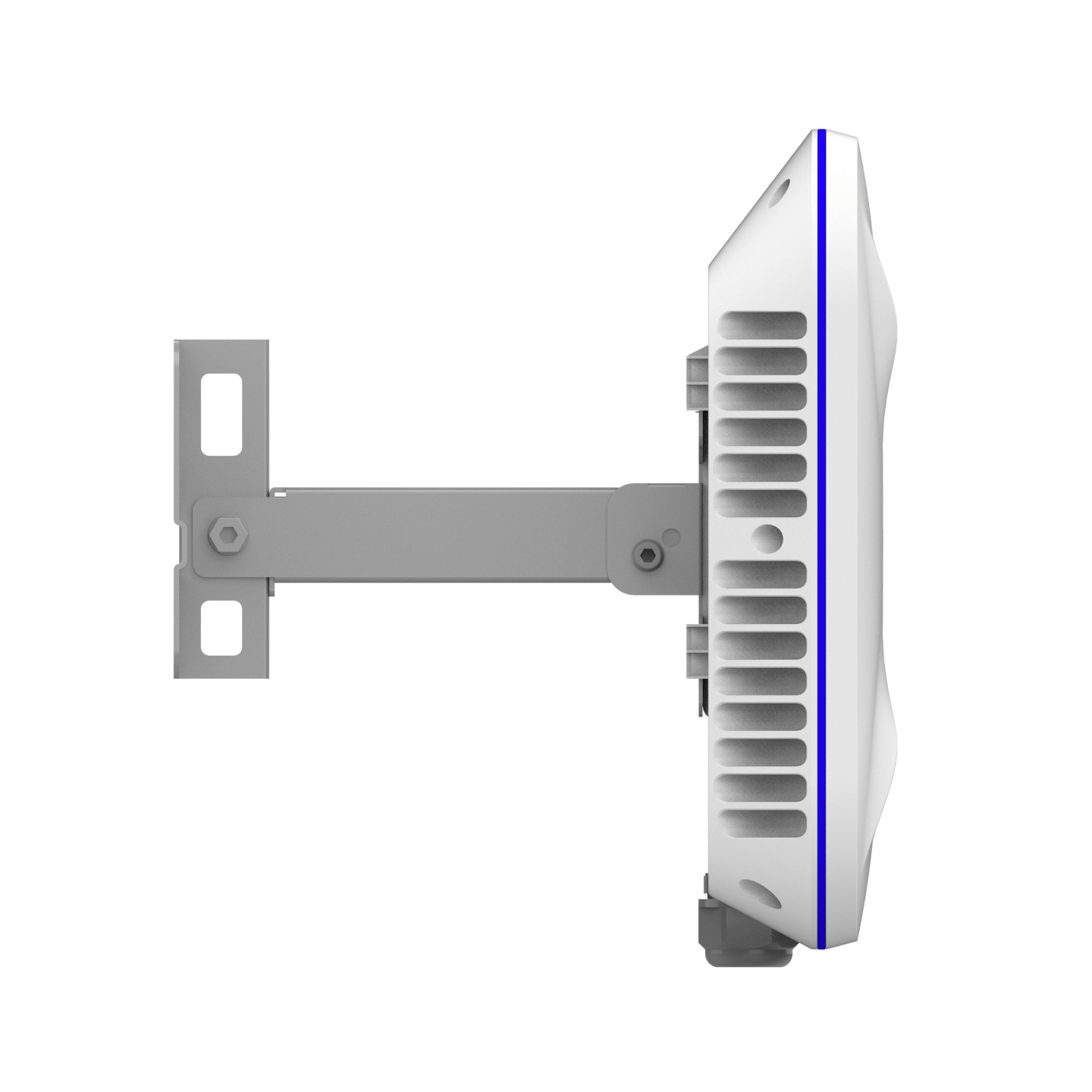

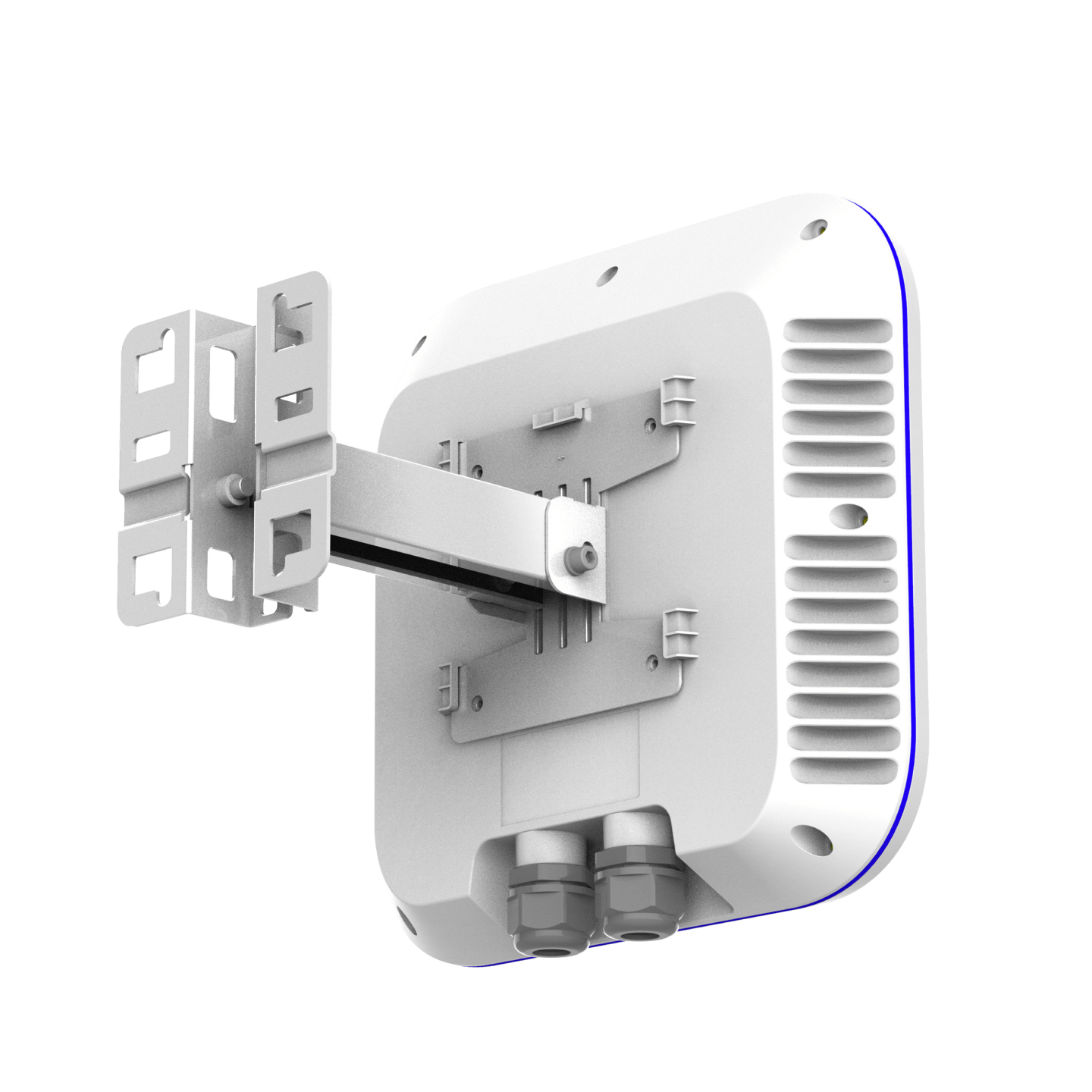

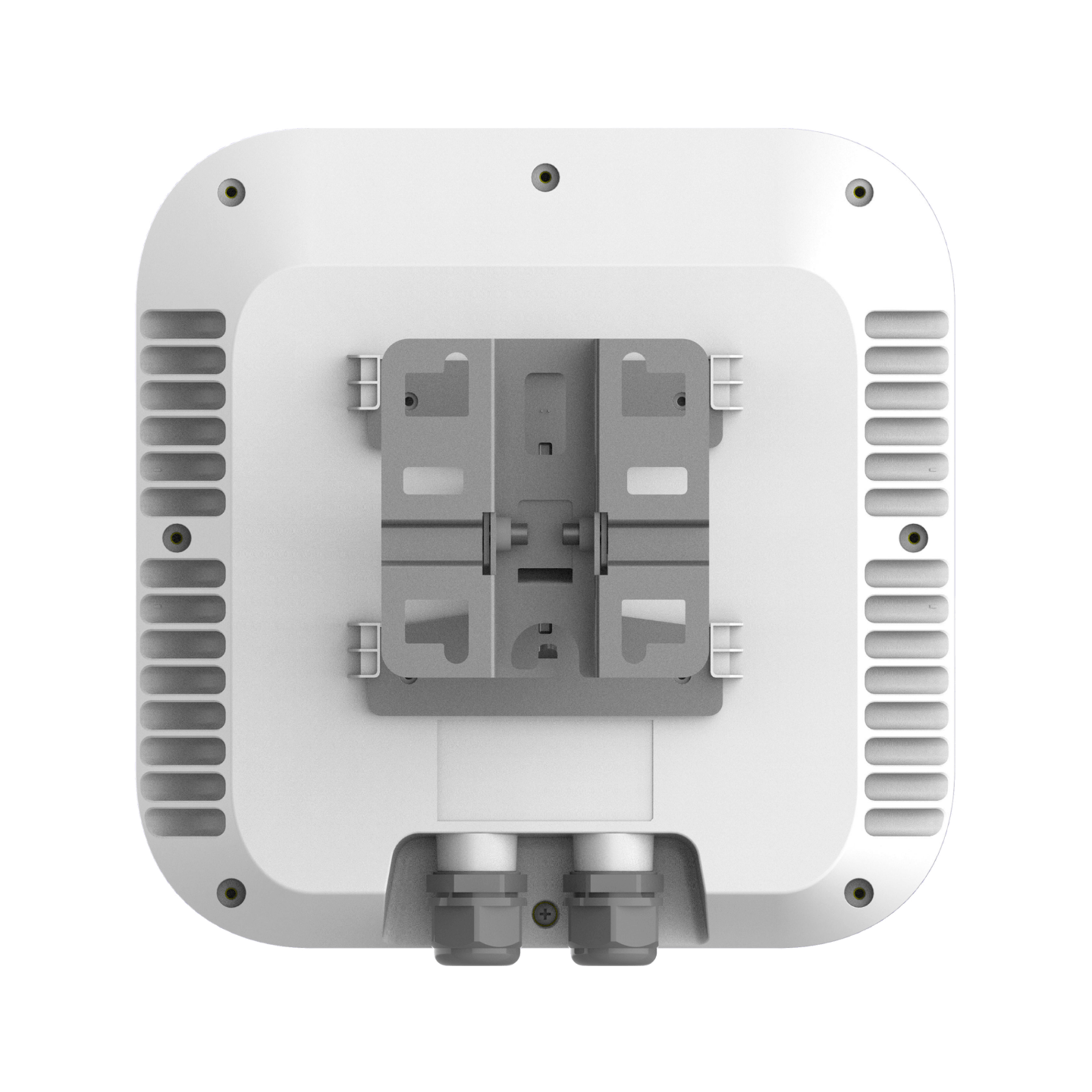

The unit supports wall and pole mounting, making it flexible for a wide range of outdoor installations.



Reyee Mesh Technology for Simple Network Expansion



With Reyee Mesh, additional outdoor access points can be added quickly without complicated wireless configuration.

Benefits include:

• Faster deployment
• Simplified expansion
• Seamless roaming experience
• Centralised network management

This makes the RG-RAP6260(G) suitable for growing wireless networks that need future expansion.



Cloud Based Network Management



The RG-RAP6260(G) works with Ruijie Cloud management tools, allowing administrators to monitor and manage wireless networks remotely.

Features include:

• Remote monitoring
• Cloud configuration
• Network optimisation
• Centralised device management
• Maintenance without onsite access

This reduces operational costs and simplifies management for distributed networks.



RG-RAP6260(G) Technical Specifications



Specification	Details
Product Type	Outdoor WiFi 6 Access Point
Wireless Standard	WiFi 6 (802.11ax)
WiFi Class	AX1800
Maximum Wireless Speed	1774 Mbps
5GHz Speed	1201 Mbps
2.4GHz Speed	573 Mbps
Antenna Type	Built-in Omnidirectional
Spatial Streams	4 Spatial Streams
Ethernet Port	1 x Gigabit Ethernet
Fibre Port	1 x Gigabit SFP
Power Supply	802.3at PoE+
Protection Rating	IP68
Mounting	Wall / Pole Mount
Operating Temperature	-40°C to +65°C
Management	Ruijie Cloud



Data Sheet Link



RG-RAP6260(G) vs RG-RAP6262(G) vs RG-RAP6202(G) Comparison



Choosing the right outdoor wireless access point depends on coverage requirements, network capacity, uplink options and deployment environment.



The Ruijie Reyee RG-RAP6260(G), RG-RAP6262(G) and RG-RAP6202(G) are designed for outdoor WiFi deployments, but each model is suited to different networking needs.



The RG-RAP6260(G) and RG-RAP6262(G) deliver modern WiFi 6 AX1800 performance, while the RG-RAP6202(G) is a WiFi 5 AC1300 outdoor access point designed for more budget-focused deployments.



Feature	RG-RAP6260(G)	RG-RAP6262(G)	RG-RAP6202(G)
WiFi Standard	WiFi 6 (802.11ax)	WiFi 6 (802.11ax)	WiFi 5 (802.11ac Wave 2)
WiFi Class	AX1800	AX1800	AC1300
Maximum Wireless Speed	1774 Mbps	1774 Mbps	1266 Mbps
5GHz Speed	1201 Mbps	1201 Mbps	866 Mbps
2.4GHz Speed	573 Mbps	573 Mbps	400 Mbps
Spatial Streams	4 streams (2×2 + 2×2 MU-MIMO)	4 streams (2×2 + 2×2 MU-MIMO)	4 streams (2×2 + 2×2 MIMO)
Outdoor Protection	IP68	IP68	IP68
Ethernet Ports	1 × Gigabit Ethernet	2 × Gigabit Ethernet	1 × Gigabit Ethernet
Fibre Uplink	Yes – Gigabit SFP	No	No
PoE Support	802.3at PoE+	802.3at PoE+	802.3at PoE
Operating Temperature	-40°C to +65°C	-30°C to +65°C	-30°C to +65°C
Antenna Type	Built-in omnidirectional	Built-in omnidirectional	Built-in omnidirectional
Mesh Support	Yes	Yes	Yes
Cloud Management	Yes	Yes	Yes
Best For	Fibre-connected outdoor networks	High-capacity outdoor WiFi areas	Cost-effective outdoor coverage



---

Which Ruijie Outdoor Access Point Should You Choose?



Choose RG-RAP6260(G) for Fibre-Based Outdoor Networks



The RG-RAP6260(G) is the best option when you need long-distance network deployment using fibre.

Recommended for:

✓ Large campuses
✓ Industrial sites
✓ Resorts and hotels
✓ Outdoor public WiFi
✓ Remote buildings
✓ Areas requiring fibre backbone connections

Its integrated Gigabit SFP fibre port allows extended network distances, making it ideal where Ethernet cabling is impractical.



---

Choose RG-RAP6262(G) for High-Density Outdoor Wireless Coverage



The RG-RAP6262(G) is better suited for locations where additional Ethernet connectivity is required.

Advantages:

✓ Two Gigabit Ethernet ports
✓ WiFi 6 AX1800 performance
✓ Supports more flexible wired deployments
✓ Excellent outdoor omni-directional coverage

Recommended applications:

• Schools and universities
• Large outdoor venues
• Commercial developments
• Multi-building sites



---

Choose RG-RAP6202(G) for Budget Outdoor WiFi Deployments



The RG-RAP6202(G) provides reliable outdoor wireless coverage at a lower cost by using WiFi 5 technology.

Recommended for:

✓ Small businesses
✓ Basic outdoor internet coverage
✓ Guest WiFi areas
✓ Simple mesh deployments

While it offers strong outdoor performance, it does not provide the increased speed and efficiency of WiFi 6 models.



---

RG-RAP6260(G) vs RG-RAP6262(G): Main Differences



The biggest difference between the two WiFi 6 models is connectivity.

RG-RAP6260(G)

Best feature:
Integrated Gigabit SFP fibre uplink

Ideal when:

• The access point is located far from the network core
• Fibre cabling is already available
• Long-distance deployment is required



RG-RAP6262(G)

Best feature:
Dual Gigabit Ethernet ports

Ideal when:

• Multiple wired devices are required
• Network redundancy is important
• Standard Ethernet infrastructure is preferred



---

RG-RAP6260(G) vs RG-RAP6202(G): Is WiFi 6 Worth It?



The RG-RAP6260(G) provides several advantages over the RG-RAP6202(G):



Faster Wireless Performance



WiFi 6 improves efficiency in busy environments with many connected devices.



Better Future Compatibility



Newer laptops, smartphones and IoT devices increasingly support WiFi 6.



Improved Network Capacity



WiFi 6 features such as OFDMA and improved scheduling help maintain performance when many users are connected.



For new installations, the RG-RAP6260(G) provides a more future-proof outdoor WiFi solution.



---

Final Recommendation



Deployment Requirement	Recommended Model
Fibre-connected outdoor WiFi	RG-RAP6260(G)
Maximum Ethernet flexibility	RG-RAP6262(G)
Budget outdoor wireless coverage	RG-RAP6202(G)
New WiFi 6 installation	RG-RAP6260(G) / RG-RAP6262(G)
Large business or campus deployment	RG-RAP6260(G)



For most professional outdoor WiFi installations, the Ruijie Reyee RG-RAP6260(G) offers the strongest balance of performance, durability, deployment flexibility and future-proof WiFi 6 technology.



Installation Sheet Link



Applications for the Ruijie RG-RAP6260(G)



Outdoor WiFi for Schools and Universities



Provide reliable campus-wide wireless access for students, staff and visitors with scalable WiFi 6 performance.



Industrial and Warehouse Wireless Networks



Maintain connectivity across large facilities where traditional indoor access points cannot provide coverage.



Hospitality and Resorts



Deliver guest WiFi throughout outdoor areas including gardens, pools, recreation zones and event spaces.



Public WiFi Networks



Create secure outdoor wireless hotspots in:



• Parks
• Squares
• Transport areas
• Community spaces

Why Choose the RG-RAP6260(G) Outdoor WiFi 6 Access Point?



The RG-RAP6260(G) combines enterprise wireless performance with simple deployment.

Key advantages:

✓ WiFi 6 AX1800 technology
✓ Dual-band high-speed wireless
✓ IP68 outdoor protection
✓ Gigabit Ethernet connectivity
✓ Fibre SFP uplink capability
✓ PoE+ installation
✓ Reyee Mesh expansion
✓ Cloud-based management

It is an excellent choice for organisations needing reliable outdoor wireless coverage without the complexity of traditional enterprise networking solutions.



Frequently Asked Questions



What is the RG-RAP6260(G)?

The RG-RAP6260(G) is a Ruijie Reyee WiFi 6 AX1800 outdoor access point designed for high-performance wireless networks in outdoor environments.



Is the RG-RAP6260(G) waterproof?



Yes. The RG-RAP6260(G) has an IP68-rated outdoor enclosure, making it resistant to dust and water exposure.



Does the RG-RAP6260(G) support PoE?



Yes. The device supports 802.3at PoE+, allowing power and data through a single network cable.



Can the RG-RAP6260(G) connect using fibre?



Yes. It includes a Gigabit SFP port for fibre uplink deployments.



How many devices can connect to the RG-RAP6260(G)?



The access point supports up to 256 connected clients across both wireless bands under the manufacturer specifications.
