RFI CD8194 5G LTE 5.5dBi Antenna

RFI CD8194 5G LTE 5.5dBi Antenna

$149.00

The outstanding performance of the RFI CD8194 5G antenna lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth.

In stock

In stock

Additional information

Weight 1 kg
Dimensions 90 × 12 × 12 cm
SKU: CD8194 Category: Tags: ,
More information about RFI CD8194 5G LTE 5.5dBi Antenna
RFI CD8194 5G LTE 5.5dBi Collinear Antenna

The new RFI CD8194 5G LTE 5.5dBi Collinear Antenna not only covers the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz).

It is ideal for use with cellular modems & active repeaters, especially when signal is poor.

The outstanding performance of the RFI CD8194 5G antenna lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.

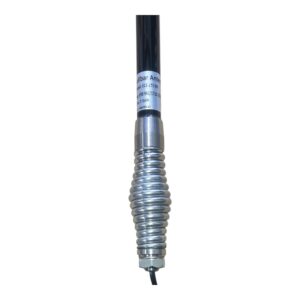

The RFI CD8194 5G LTE 5.5dBi Collinear Antenna Includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:
– Patented PCB based collinear design offering the ultimate in pattern and gain stability.
– Ideal for new 5G/LTE networks with true multi-band coverage.
– High gain across all bands making it suiting fringe and rural applications. Includes an integrated spring with threaded stud/nut for easy installation on vehicles.

Key Features:
– Patented PCB based collinear design offering the ultimate in pattern and gain stability.
– Ideal for new 5G/LTE networks with true multi-band coverage.
– High gain across all bands making it suiting fringe and rural applications.

Colour Black or White
Packaging Retail Hang Sell Bag
Whip Material Fibreglass
Cable And Connector 5m of 9006 low loss cable with SMA(M)
Frequency Range 1710 – 2170, 2300 – 2700, 3400 – 3800, 698 – 960
Nominal impedance 50
Power w 10
Nominal Gain Dbi 5.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
VSWR <2.5:1
Mounting area 13-16mm Diameter Hole
Tuned bandwidth Full. No tuning required
Horizontal Beamwidth Omni-directional
Frequency MHz 698-960 / 1710-2170 / 2300-2700 / 3400-3800
Length [mm] 675
Brand RFI



  1. CD8100 Series Product Specifications
  2. 8100 Series Specifications Matrix
  3. CD8100, CRD8100 & CDQ8100 Installation Sheet
